Which desk frame should you choose? Learn about different types and choosing the ideal model for your health and productivity

2026-06-18

The impact of workstation design on health and efficiency. Which electric desk frame should you choose?

Prolonged work in a sitting position places a significant load on the musculoskeletal system, causing chronic back pain, circulatory disorders, and decreased concentration. Modern ergonomics identifies sit-stand systems as an effective solution to this problem, enabling regular changes of position during work. The key element determining the functionality of such a workstation is the electric desk frame.

It is the mechanical component responsible for the stability of the structure, smooth height adjustment, and the overall service life of the furniture under load. This study presents a detailed technical analysis of Spacetronik frames, from basic single-motor models to advanced multi-segment systems with two drives, making it easier to choose the optimal foundation for an ergonomic workstation.

Anatomy of an electric desk frame and its key mechanical components

Choosing the right frame requires understanding its internal construction. The performance parameters and structural rigidity are influenced by four main components, which include motors, columns, column segments, and the electronic controller.

Drive units (motors) determine the maximum static and dynamic load capacity, the linear lifting speed, and the level of generated noise. Load-bearing columns, i.e. the frame legs, consist of telescopic segments. Their number directly affects the desk's lateral stability, especially in extreme upper positions, as well as the total adjustment range. The process of synchronous lifting is managed by a microprocessor controller, responsible for precise tabletop positioning. The use of high-grade steel and precision gears guarantees resistance to material fatigue and ensures safe operation for many years.

Pre-purchase analysis and frame selection criteria

The choice of an electric frame should be supported by an analysis of the planned working load, i.e. the total weight of monitors, computers, and accessories, as well as the user's anthropometry. It is important to determine the minimum and maximum working height, especially when integrating the desk with additional devices, such as under-desk training treadmills. A higher mechanical configuration translates into better structural rigidity of the system.

Single-motor frame with 2 segments and its technical specification

Structures based on one motor and two column segments are the basic variant in the adjustable desk segment. In this system, a single drive unit drives both columns via a drive transmission shaft. The telescopic legs consist of two sections of steel profiles. This is a solution dedicated to workstations with a low or medium level of complexity.

The advantages of this type of construction include simplicity of design, low energy consumption, and an optimal price-to-capability ratio. However, technical limitations should be taken into account, because single-motor frames are characterized by lower load capacity, usually in the range from 70 to 80 kg, and a lower lifting speed. Due to the use of two segments, the adjustment range is narrower, and the rigidity of the structure at maximum elevation may decrease. An example of a stable model in this class is the SPE-124BO, which works well with standard, lightweight worktops.

Who this model will be suitable for

This solution is dedicated to beginner users of sit-stand systems and people looking for economical equipment for a home office. It will work perfectly for pupils, students, and remote workers who use a laptop and one monitor and activate the standing position occasionally during the working day.

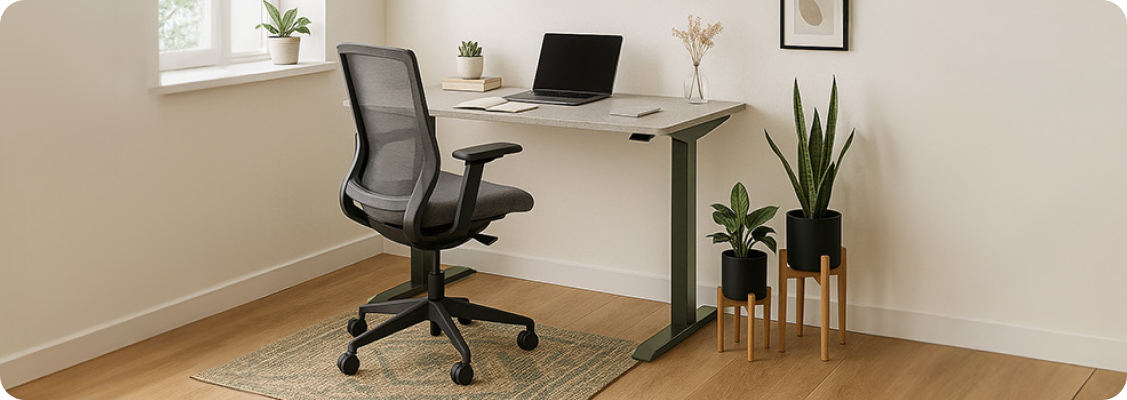

Modern electric height-adjustable desk supporting health and productivity in remote work

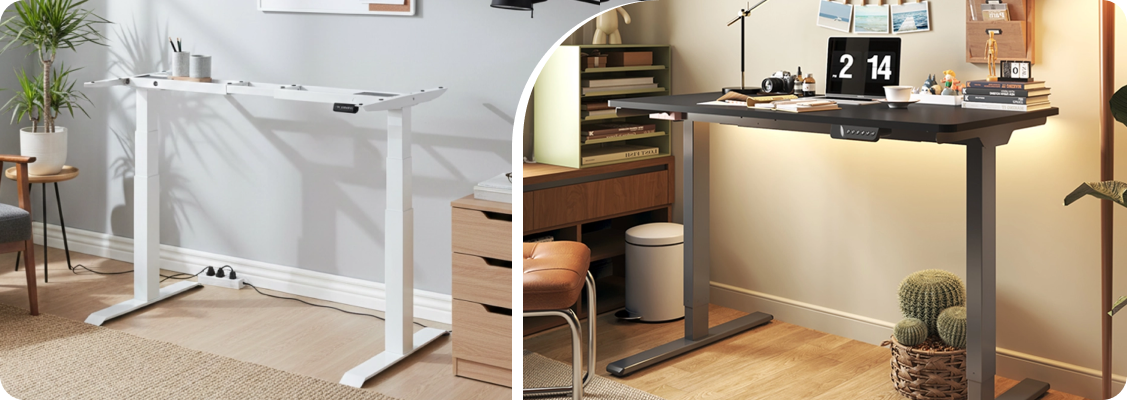

Dual-motor frame with 2 segments as the golden mean for office workstations

The use of a dual-motor system combined with two-segment columns significantly increases the workstation's performance parameters. Each column has an independent drive integrated in the upper section, which eliminates the need for mechanical connecting shafts and ensures perfectly synchronous electronically controlled operation.

The main advantage of dual-motor frames is their high load capacity, often exceeding 100 kg, which allows the installation of heavy solid wood tops and advanced multi-monitor systems. The system is characterized by higher operating culture, faster response time, and better damping of lateral vibrations. The two-segment column maintains a high level of rigidity within the standard height range, for example up to 123 cm. A representative of this category is the SPE-214EJ model, dedicated to intensive, everyday use in offices and design studios.

Who this model will be suitable for

The structure meets the needs of people who regularly and dynamically change their working position. It is the optimal choice for programmers, analysts, and office workers with an extensive setup consisting of two monitors, a desktop computer standing on the tabletop, and additional office accessories.

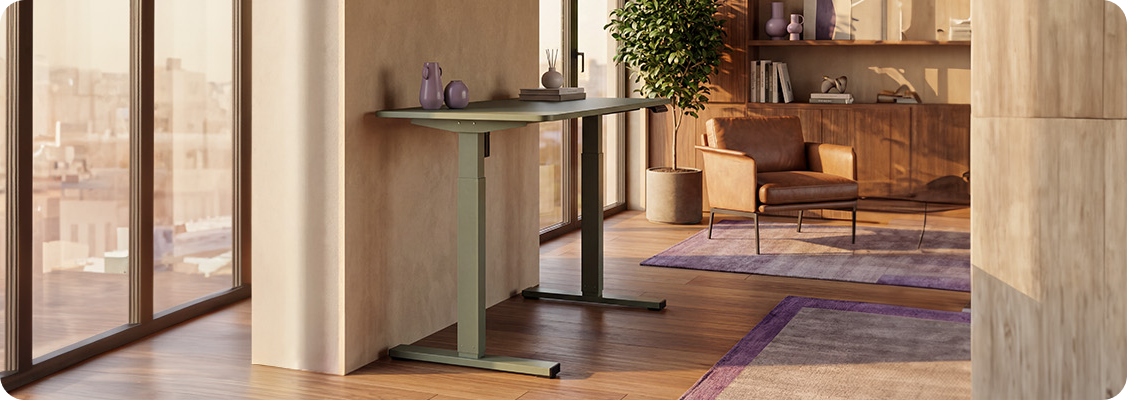

Green electrically adjustable ergonomic desk

Characteristics of a dual-motor frame with 3 segments guaranteeing precision and comfort

The combination of two motors with a three-segment column structure represents the advanced class. The introduction of a third telescopic profile radically changes the operating characteristics of the frame. This makes it possible to lower the minimum starting level and raise the maximum lifting point at the same time.

Frames of this type are characterized by a wide adjustment range, often from 62 to 127 cm, which allows full personalization of the workstation both for shorter people and very tall users. The additional segment overlaps deeper into the column structure, which drastically reduces technological play and ensures excellent static rigidity, even when fully extended under dynamic load. The Spacetronik SPE-223 model is the engineering standard for professional workstations where uncompromising structural stability is required.

Who this model will be suitable for

This is a universal frame recommended for families, companies using a hot-desking system, and workstations shared by people of extremely different heights. The wide adjustment range means that a person under 165 cm tall and a user over 190 cm tall can work comfortably at the same tabletop, maintaining perfect ergonomics in both positions.

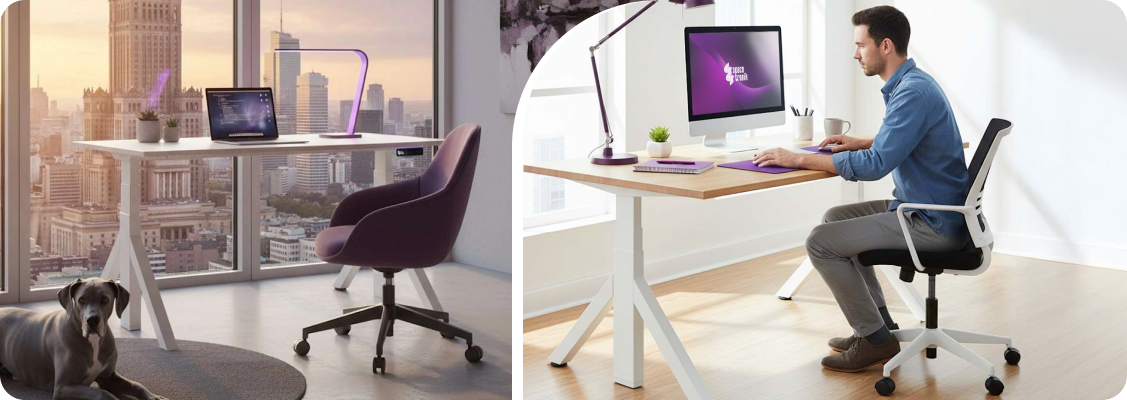

Dual-motor electric desk frame with 3 segments Spacetronik – perfect height adjustment and maximum stability

Dual-motor frame with 4 segments offering uncompromising precision and rigidity

In the premium segment, the highest precision is offered by the dual-motor frame with four column segments. This is a less common structure, designed for extreme ergonomic requirements and specialized technical applications.

The use of four profile sections allows an extreme height adjustment range to be achieved, for example from 58 to 130 cm. This solution guarantees full stability in extreme positions, eliminating the effect of tabletop wobbling while writing or operating measuring apparatus. This structure is dedicated to laboratories, graphic studios, and users with unusual anthropometric conditions who expect absolute system rigidity. SPE-224 represents the pinnacle achievement in the mechanics of adjustable furniture.

Who this model will be suitable for

A product created for professionals, including architects, video editors, CAD designers, and gamers who use heavy, vibration-sensitive equipment. It is also an ideal choice for very short people and children, as it allows the tabletop to be lowered to a height unavailable for standard frames, enabling seated work while maintaining the correct angle at the elbow joints.

Frame type	Number of motors	Number of segments	Height adjustment range	Lateral stability	Lifting speed	Purpose and class	User profile
Single-motor	1	2	Standard (approx. 73 to 123 cm)	Sufficient	Standard (approx. 25 mm/s)	Economical and basic	Light tabletop loads, budget home workstations.
Dual-motor	2	2	Standard (approx. 73 to 123 cm)	High	Fast (approx. 32 to 35 mm/s)	Medium Premium and everyday work	Regular position changes, heavier setup, and two monitors.
Dual-motor	2	3	Wide (approx. 62 to 127 cm)	Very high	Fast (approx. 35 to 38 mm/s)	Premium and professional	Wide height range, shared workstations.
Dual-motor	2	4	Extreme (approx. 58 to 130 cm)	Unmatched	Fast and precise	Ultra Premium and specialist	Laboratories, high hardware requirements, short stature.

Principles for selecting and integrating the tabletop lifting system

Analysis of load and hardware configuration

Before choosing a frame, you should add up the weight of all elements that will be placed on the worktop, including the weight of the tabletop itself. For extensive IT configurations, dual-motor systems with a load capacity above 100 kg are recommended.

Matching anthropometric criteria

The required desk height in the sitting and standing position depends directly on the user's height. In the case of workstations shared by people of extremely different heights, it is necessary to use 3- or 4-segment columns, guaranteeing an appropriate adjustment range.

Structural rigidity and workstation stability

Static and dynamic stability is crucial when working in a standing position. Structures with a greater number of segments and two motors better dampen micro-vibrations resulting from everyday use.

Electronic support systems and safety

Modern controllers are equipped with position memory, soft start and stop modules, as well as advanced anti-collision systems with a gyroscopic sensor, which automatically interrupt column movement if an obstacle is encountered.

Compatibility with finishing elements

The frame structure should allow adjustment of the spacing of the crossbeams of the under-top frame, which enables the installation of tops with various widths from 100 to even 200 cm without loss of geometric stability.

FAQ - frequently asked questions

What are the technical differences between a single-motor and a dual-motor drive?

The dual-motor system has independent drives in each column, controlled by a common controller, which ensures higher load capacity, faster linear adjustment, and a higher operating culture. The single-motor system uses a drive shaft to synchronize the legs, which limits its mechanical efficiency, lifting speed, and maximum load-bearing capacity of the structure.

How does the number of column segments affect desk stability?

The number of segments determines the lateral rigidity of the telescopic structure. Three and four segments have larger overlap zones of steel profiles inside the column, which minimizes the formation of play and tabletop wobbling at significant heights. It also allows a wider vertical adjustment range to be achieved.

Is a two-segment frame suitable for constant work in a standing position?

Yes, provided that the user's height is within the standard range from approximately 170 to 185 cm, and the weight of the work equipment does not exceed the rated load capacity. For people over 190 cm or under 165 cm tall, three-segment frames are recommended due to the need to obtain lower or higher extreme points.

What is the actual load capacity of Spacetronik electric frames?

Depending on the selected configuration, the load capacity ranges from 70 or 80 kg for single-motor models to 100 or 125 kg for advanced dual-motor structures. This value includes the weight of the tabletop and all accessories placed on its surface.

Are Spacetronik frames compatible with tabletops from other manufacturers?

Yes. The under-top frame structure in Spacetronik frames has horizontal width adjustment. This enables stable installation of tops with a length from 100 to 200 cm and a width from 60 to 80 cm, made of MDF, chipboard, or solid wood.

What are the documented ergonomic benefits of working in a sit-stand system?

From the perspective of occupational medicine, regular changes of position reduce the static load on intervertebral discs, improve peripheral circulation, and reduce tension in the shoulder girdle area. Standing-sitting work counteracts the phenomenon of afternoon sleepiness and stimulates a higher level of concentration.

Summary

Choosing the optimal electric desk frame is a key structural decision that determines the ergonomics and durability of the entire workstation. Height adjustment systems are a technical response to the challenges associated with a sedentary professional lifestyle, directly affecting the prevention of spinal disorders and the operational efficiency of the team.

The Spacetronik product portfolio offers full scalability of solutions, enabling precise matching of mechanical parameters to the specifics of the tasks performed and the individual conditions of users. We invite you to review the full technical specification of electrically adjustable frames on Spacetronik.store in order to optimize your own workspace.
